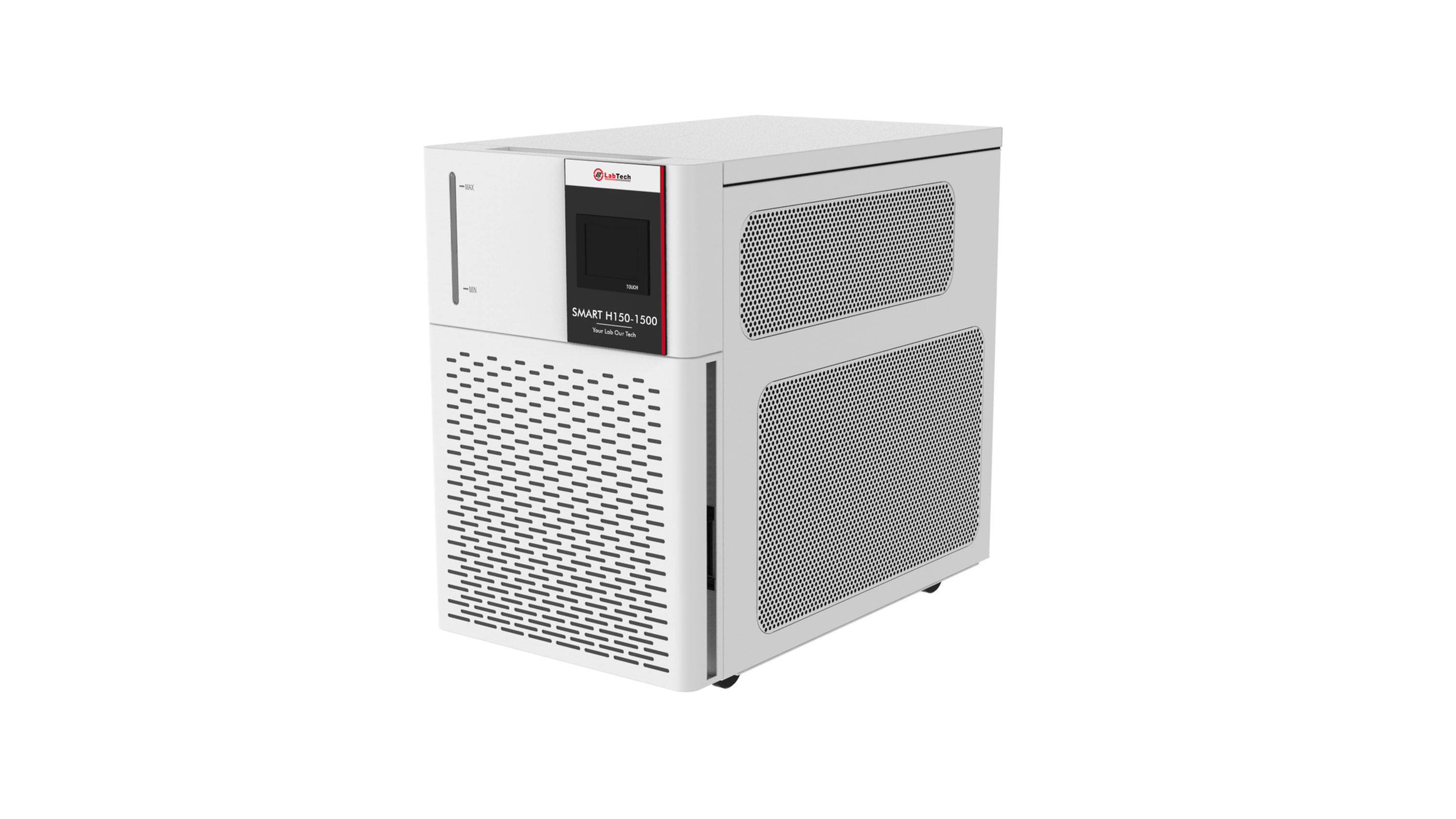

H150-1500 Recirculating Water Chiller, 230V
Part No. LW1500
Temp. Range 8℃～35℃
Temp. Stability ±0.1℃
Temp. Control Mode PID
Cooling Capacity 1500W
Pump Flow 6.4L/min
L×W×H 27×15×23 inches
Weight 172 lbs
Power Supply 230V,50Hz
Product Info
Warranty
Specifications
Combining operational excellence and technological expertise with an intimate understanding of customer needs, LabTech offers the H150-1500 recirculating water chiller to ensure accurate and constant cooling conditions for instrumentation.
The chiller is provided with a touchscreen display to monitor and control instrument temperature from 8-35°C and is designed to operate on 230V/50/60Hz with a standard 230V US plug for use with similar electrical requirements. It has a PID Temperature control mode to provide Temperature Stability at +/-0.1℃ with efficient compressor cooling. Cooling capacity for the unit is 1500W at 25℃ and is ideal for use with rotary evaporation, reflux extraction and AA/ICP applications. The H150-1500 has a pump capacity of 6.4L/min and a max pressure of 60psi for external circulation. The liquid circuit pressure is monitored and controlled via analog pressure indicator.
Furthermore, the unit is provided with a liquid level indicator for maximum safety of operations. The chiller has a built in drain to easily remove the liquid from the internal reservoir and water connections are located on the rear side.
